Water King Fleck 5600
Water King Fleck 5600
Water King Fleck 5600

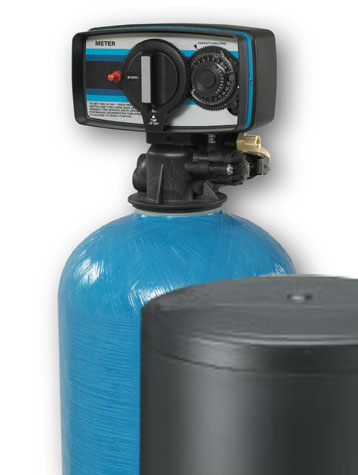

The Water King Fleck 5600

Water King Fleck 5600

Discover the dramatic difference a Water King Water Softener makes. From the shower to your laundry room nothing transforms your water quite like a Water King Water Softener. With over 45 years of experience in water treatment, Water King water softeners set the standard in water treatment technology. Our state-of-the-art water softeners features

Complete Spec Sheet

Fleck 5600 User Manual

Examples Of Hard Water

Spotty Dishes Clogged Pipes Dingy Water
Spotty Dishes
Clogged Pipes
Dingy Water

Click Here And Learn The Benefits Of Softwater

Features:

  • Simple mechanical design is easy to use

  • Two valve body designs: one for downflow regeneration and one for upflow (covers every valve in the 5600 family - quick access to all internal components)

  • Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior

  • Ruggedly-built timer is designed with heavy-duty 3/8"  wide plastic gears

  • 5600 controls are user-friendly and easily programmable

  • Non-corrosive, UV-resistant, fiber-reinforced polymer valve body

  • Choice of 7 or 12 day clock or demand regeneration with a mechanical meter

  • Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor

  • Designed with double backwash

Options:

  • Bypass valve (Fiber-reinforced polymer or stainless steel)
  • Backwash filter
  • Upflow regeneration
  • Low water use piston (uses as little as 29 gal./regeneration)
  • Meter-initiated regeneration
  • Meter Initiated

Meter Initiated

Part No. Mineral Tank Resin Capacity Service Flow Ship Weight
SFT568 8 X 44" 0.75  22,500 GPG  8 GPM (Peak)  80 lbs.
SFT569 9 X 48" 1  30,000 GPG  10 GPM (Peak)  115 lbs.
SFT5610 10 X 54" 1.5  45,000 GPG  10 GPM (Peak)  155 lbs.
SFT5612 12 X 52" 2  60,000 GPG  12 GPM (Peak)  210 lbs.

Time-Clock Initiated

Part No. Mineral Tank Resin Capacity Service Flow Ship Weight
SFT568T 8 X 44" 0.75  22,500 GPG  8 GPM (Peak)  80 lbs.
SFT569T 9 X 48" 1  30,000 GPG  10 GPM (Peak)  115 lbs.
SFT5610T 10 X 54" 1.5   45,000 GPG  10 GPM (Peak)  155 lbs.
SFT5612T 12 X 52" 2  60,000 GPG  12 GPM (Peak)  210 lbs.
